Patient Hip Positioning Kit

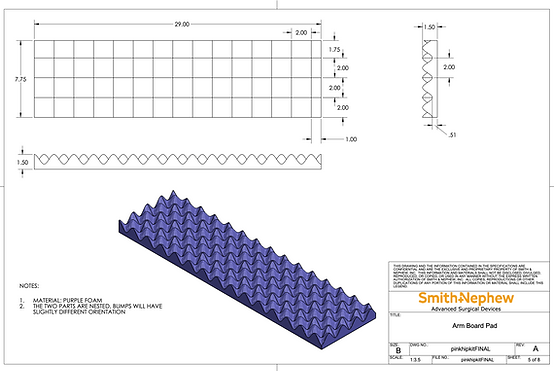

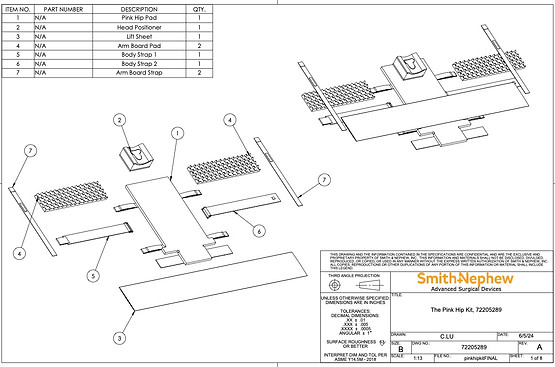

I took dimensions and created engineering drawings of OEM foam hip surgery kit components in SolidWorks as part of a project to reverse engineer the device.
Main SolidWorks Skills Used
-
Creating drawings- bill of materials, ​views, dimensions
-
Assembly- advanced mates
-
Lofted boss/base tool
