Hairdryer

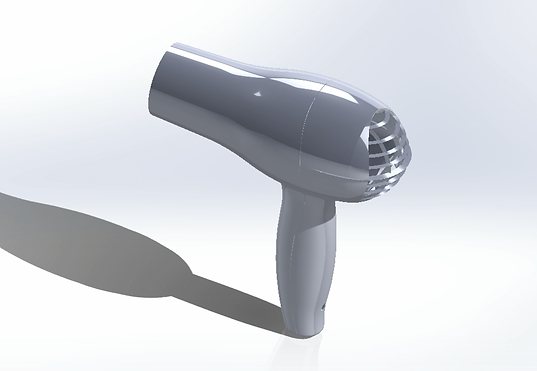

I modeled a Conair 1875 hairdryer using pictures of the left, back, front, and right views labeled with dimensions. and then assembling them. I also created a parting line and included fasteners and ribs on the inside of the hairdryer.

Main SolidWorks Skills Used

  1. Swept boss/base tool

  2. Lofted boss/base tool

  3. Surface knit tool

  4. Fastening features- mounting boss

  5. Revolved boss/base tool

  6. Creating reference planes/reference geometry

  7. Rib feature

  8. Split line feature

Screen Shot 2024-02-02 at 12.51.18 AM.png
Screen Shot 2024-02-02 at 12.51.51 AM.png
Screen Shot 2024-02-02 at 12.52.24 AM.png
Screen Shot 2024-02-02 at 12.52.03 AM.png
Screen Shot 2024-02-02 at 12.54.04 AM.png
